JUKI DMN-5420N-7
JUKI
DMN-5420N-7
Needle-Feed 1-Needle Lockstitch with Micro-Lifting Presser Foot
🧵 Sewing — Lockstitch (Needle Feed)

The DMN-5420N-7 pairs needle feed with a micro-lifting presser foot that gently releases fabric tension at each stitch cycle. This prevents puckering and distortion on fine, lightweight and stretch materials — chiffon, silk, jersey and delicate synthetics — while the needle feed maintains pattern alignment. The ideal choice for high-quality blouses, lingerie and lightweight fashion.

Download Catalogue
⚙️
The stitch quality is consistent even during high-speed operation

Capable of high-speed sewing, it can also flexibly respond to various applications, thus leading to higher productivity.

⚙️
The knife is sharp enough to cut any type of material

The knife is capable of cutting any kind of material regardless of its thickness or toughness, including heavy-weight material, elastic material and brushing material.

The one-touch utility knife lever enhances the comfort of operation
The one-touch utility knife lever enhances the comfort of operation

Since the knife lever has been plasted so as to prevent rust, there is no need to worry about the material becoming soiled with rust.

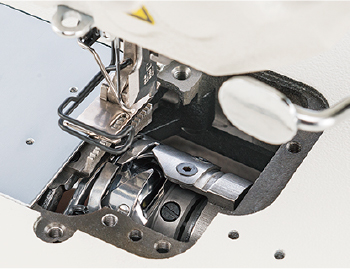

Sure thread trimming mechanism
Sure thread trimming mechanism

The thread trimmer is designed to cut various threads of different thicknesses, so the range of the applicable thread thickness number has been widened. The thread trimmer can therefore cut even a thick thread with ease.

Adjustment of the position of the cloth trimming knife
Adjustment of the position of the cloth trimming knife

The cloth trimming knife has been designed so that it can move as much as 5.5mm toward you from the center of the needle.

The operation panel can be selected according to the process (CP-18A, CP-180A)
The operation panel can be selected according to the process (CP-18A, CP-180A)

Two different operation panels, the CP-18A and CP-180A are applicable to the DLM- 5400N-7 and DMN-5420N-7. Both operation panels are provided with the production support function. The production support function actually consists of three different functions (six different modes)

SpecificationDMN-5420N-7
ApplicationDelicate & lightweight fabrics
Max. Sewing Speed4,000 sti/min
Max. Stitch Length5 mm
Presser Foot LiftBy hand 5.5 mm / By knee 13 mm
Feed SystemNeedle feed + micro-lifting presser foot
Needle TypeDB × 1 (Nm 70–90)
Thread Trimmer
Drive TypeDirect-drive servomotor
Power Consumption210 VA

* Specifications subject to change. Contact us for the latest datasheet.

📄
