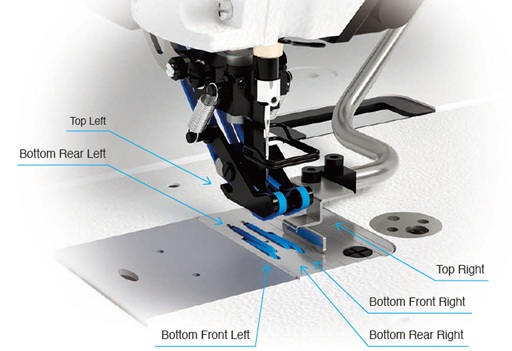

Curved processes like easing are completed efficiently and beautifully. JUKI developed the 6-belt feed-assist mechanism as a unique “fabric handling” assist technology*1 to streamline work and boost productivity. Automatic calculation and precise control of the optimal feed with six belts arranged above and below ensure the easy handling of difficult processes. The operation is achieved fast and simply by guiding the fabric by hand.

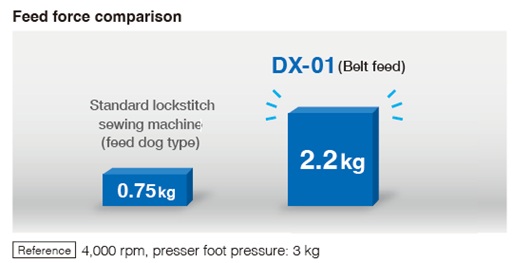

Stable feed force and consistent stitching even at high speeds The upper and lower belts securely grip even hard-to-feed materials, ensuring strong feed force during high speeds and reducing defects such as skipped or jumping stitches.

Versatile design : multiple functions in a single machine By attaching the included component「 Presser foot joint」 to the presser bar, standard presser feet can be installed, allowing for flexible operation according to dierent applications.

Seamless continuous sewing with automatic step switching Step switching supports both manual operation via the hand switch and automatic operation based on a preset number of stitches. Sewing continues without feed stoppage during step changes.

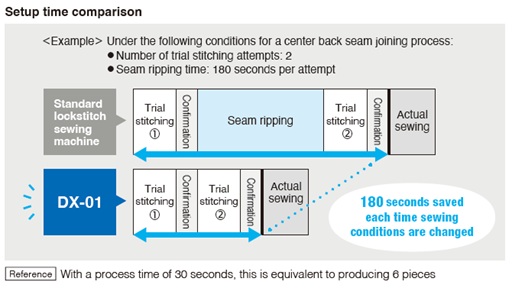

Reduced seam ripping during trial stitching High-precision trial stitching with a minimal risk of fabric damage is achieved by operating only the feed mechanism*1 while securely gripping the fabric between the upper and lower belts. This approach reduces the time spent on seam ripping, an operation that used to take up to three times longer than the actual sewing. *1 J-DX F Technology (JUKI Digital transformation Feed Technology) : JUKI’s feed technology enables independent control of the feed mechanism and needle bar drive. This technology is the foundation of the 6-belt feed-assist mechanism and new value offered by the DX-01.

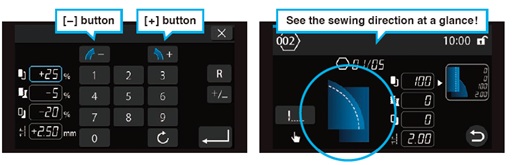

Ratio-based input for setting the optimal feed amount Configure the optimal feed amount simply and automatically by entering the differential value between the upper/lower and left/right belts as a ratio (%) relative to the set stitch length. Fine-tuning the feed with the [–] and [+] buttons is as easy and intuitive as using a dial. The on-screen illustration changes in real time according to the input values.
