JUKI LG-158
JUKI
LG-158
Heavy-Duty Compound-Feed Flat Bed Lockstitch Machine
🔨 Non-Apparel — Flat Bed (Heavy Compound Feed)

Standard compound feed flat bed machine for general non-apparel sewing. The JUKI LG-158 is a Heavy-Duty Compound-Feed Flat Bed Lockstitch Machine built for industrial production. It offers a maximum sewing speed of 1,500 sti/min and a stitch length range of 10mm (normal/reverse feed), with the full official JUKI specification listed below. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue

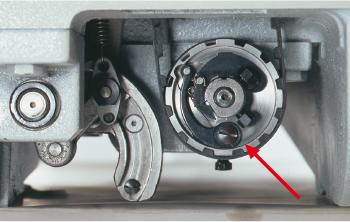

Safety device protects the needle and hook from damage
Safety device protects the needle and hook from damage

If the thread gets caught in the hook, the safety device is automatically actuated, preventing possible hook damage. Pressing the reset button will immediately return the machine to the normal state.

Consistent seam quality
Consistent seam quality

With its unison feed mechanism that ensures a smooth and steady feed of materials, the machine provides consistent seam quality with no material slippage. Eleven different kinds of needle gauges are prepared for the LG-158. The most suitable gauge for the current machine use can easily be selected.

The frequency of bobbin thread replacement is reduced
The frequency of bobbin thread replacement is reduced

Since the machine incorporates a vertical-axis large hook, the frequency of bobbin thread replacement is reduced, further increasing efficiency.

SpecificationValue
ModelLG-158 (2-needle)
Max. sewing speed1,500sti/min*
Max. stitch length10mm (normal/reverse feed)
Needle bar stroke46.9mm
Needle gaugeStandard 19.1mm (3/4")
Lift of the presser footBy pedal: 21.5mm
Thread take-upSide type
Alternating vertical movement6mm~19mm
HookVertical-axis large hook
Needle (at the time of delivery)DD×1 (#25)
Thread#20~#5, B69~B138, Nm=40/3~20/3
Safety mechanismProvided as standard
Bobbin winderBuilt on the machine arm
LubricationBy an oiler
Lubricating oilJUKI New Oil No.1 (equivalent to ISO VG7)
Distance from needle to machine arm750mm
Bed size1,088mm×230mm
Weight of the machine head108kg

* Specifications subject to change without notice. Contact us for the latest datasheet.

📄
