JUKI LH-3578A-7
JUKI
LH-3578A-7
2-Needle Lockstitch — Needle-Feed & Unison-Feed Variants
🧵 Sewing — 2-Needle Lockstitch

2-needle lockstitch with needle feed for difficult-to-match fabrics and stripes. The JUKI LH-3578A-7 is a 2-Needle Lockstitch — Needle-Feed & Unison-Feed Variants built for industrial production. It offers a maximum sewing speed of 3,000 sti/min and a stitch length range of 5mm, with the full official JUKI specification listed below. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue

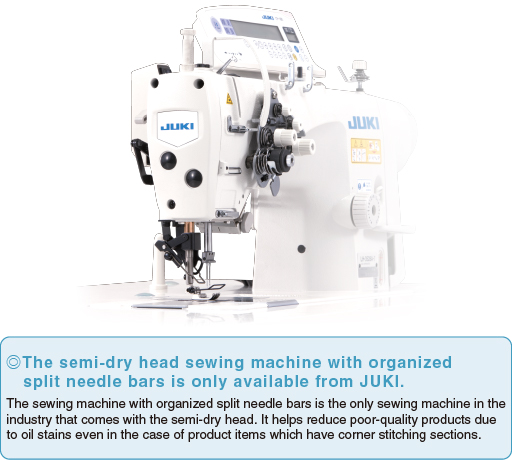

A semi-dry head is now installed in all of the models of the LH-3500A SeriesONLY JUKI
A semi-dry head is now installed in all of the models of the LH-3500A SeriesONLY JUKI

All models of the LH-3500A Series are provided with a semi-dry head to eliminate staining with oil from the frame (the needle bar part).

The

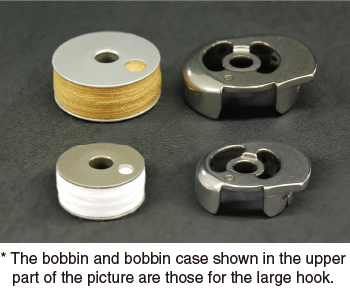

The "large-hook type" uses a hook 1.8 times larger than standard

This increase in size reduces the frequency of bobbin-thread changes The sewing machine has been designed to eliminate waste time and the operator's stress.

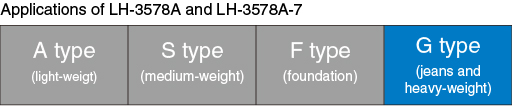

Many different models are prepared according to the type of materials
Many different models are prepared according to the type of materials

From a wide variety of models, the best-suited model can be chosen according to your sewing items, ranging from light- to heavy-weight materials.

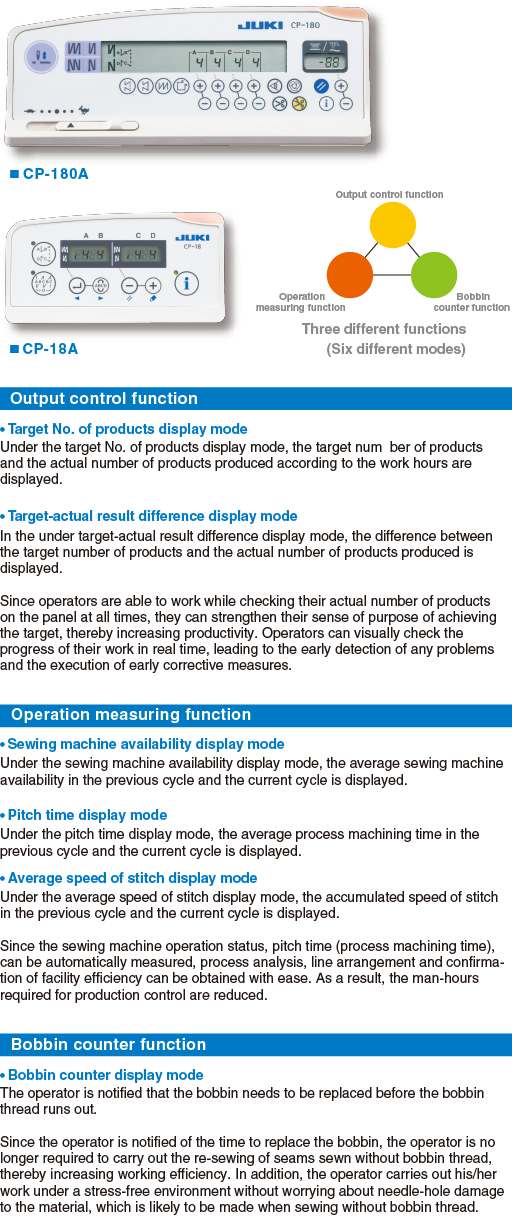

Production support function
Production support function

The production support function actually consists of three different functions (six different modes), which are the output control function, operation measuring function and bobbin counter function. Each with its own production support effect. An appropriate function (mode) can be selected as required. The parameter setting can be done on the panel located on the top of the sewing machine, thereby helping reduce operator fatigue during setup changing.

SpecificationValue
ModelLH-3578A-G
ApplicationJeans and heavy-weight
Organized split needle bar mechanismNot provided
HookVertical axis 1.8 times large hook
LubricationSemi-dry / hook section: minute-quantity lubrication (tank system)
Max. sewing speed3,000sti/min*
Distance from needle to machine arm120mm (H) × 266mm (W) × 87mm (height of jaw part)
Feed systemNeedle-feed
Max. stitch length5mm
Needle bar stroke33.4mm
Thread take-upSlide type
TensionerStandard type
Thread winderBuilt-in the machine head
Lift of the presser foot7mm (by hand), 13mm (by knee)
Oiling methodEco-oil method (circulation type), Clean oil method
Tank capacity280cm³
Lubricating oilJUKI New Defrix Oil No.1 (equivalent to ISO VG7)
NeedleDP×5 (#21) #16~#23
Outside dimensions of package (mm)LH-3578A: 718mm (H) × 341mm (W) × 744mm (L) LH-3578A-7: 768mm (H) × 341mm (W) × 744mm (L)
Machine head weight (including the package)LH-3578A: 48kg LH-3578A-7: 61kg (with AK: 63kg)

* Specifications subject to change without notice.

📄
