JUKI MO6800S
JUKI
MO6800S
Direct-Drive, High-Speed, Overlock / Safety Stitch Machine
🧵 Sewing — Overlock / Safety Stitch

Servo-motor overlock machine with energy-saving drive system. The JUKI MO6800S is a Direct-Drive, High-Speed, Overlock / Safety Stitch Machine built for industrial production. It offers a maximum sewing speed of 7,000 sti/min and a stitch length range of 0.6~3.8 (4.5)mm, with the full official JUKI specification listed below. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue

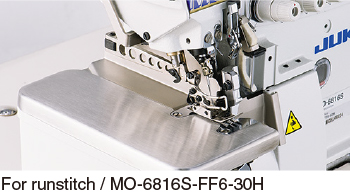

The machine achieves beautifully finished seams of improved quality even when run at a high speed
The machine achieves beautifully finished seams of improved quality even when run at a high speed

The machine is widely applicable to the sewing of light- to heavy-weight materials. Since the machine is provided with a needle thread take-up mechanism and a looper thread take-up lever, it ensures high-quality, well-tensed and soft seams with a beautiful texture which flexibly correspond to the elasticity of the materials even when run at speeds as high as 7,000 sti/min. In addition, the machine has a wider and brighter needle entry and provides improved responsiveness to the materials, thereby helping the operator use the machine more easily. The optimally-balanced design of the machine reduces both operating noise and vibration, contributing to more comfortable sewing work.

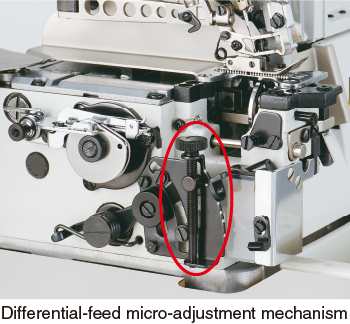

The machine is provided with functions which contribute to easier operation
The machine is provided with functions which contribute to easier operation

The differential-feed micro-adjustment mechanism, external increasing of the differential feed ratio and the main feed dog height can all be adjustable on the front face of the sewing machine with a screwdriver. The machine is provided as standard with functions which enable easy and best-suited adjustments according to the material to be used.

🧵
High-Speed Production

Delivers a maximum sewing speed of 7,000 sti/min for high-output production while maintaining consistent stitch quality.

SpecificationMO-6804SMO-6814SMO-6816SMO-6843S
Stitch type1-needle overlock2-needle overlockSafety stitching3-needle safety stitching
Stitch style in the U.S.A.504514516-
Max. sewing speed7,000sti/min*
Stitch length0.6~3.8 (4.5)mm
Needle gauge (mm)-2.03.0, 5.03.0+2.0, 5.0+2.0
Overedging width (mm)1.5, 4.02.0, 3.0, 4.04.0, 5.0, 6.03.0
Differential feed ratioFor gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
Needle bar stroke24.5mm (60H:27.0mm)
Inclination angle of the needle20°
Needle bar bushingLower bushing method
NeedleDC×27 (excluding some subclass model)
Max. lift of the presser foot7mm (excluding some subclass model)
Max. presser foot pressure63.7N (6.5kgf)
Stitch adjusting methodBy push-button
Differential-feed adjusting methodBy lever (with micro-adjustment)
Weight of the machine head27kg
LubricationAutomatic
Lubricating oilJUKI Machine Oil 18 (equivalent to ISO VG18)
Needle coolerProvided as standard
Needle thread heat removerProvided as standard
Micro-lifterOption

* Specifications subject to change without notice. Contact us for the latest information.

📄
