The long distance from the machine arm to the needle contributes to improved workability

Most-advanced machine best suited to the stitching for heavy weight materials.

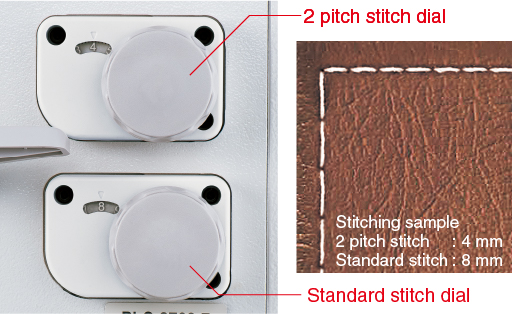

Stitch length can be changed over among different lengths

The sewing machine with a thread trimmer is provided as standard with a 2-pitch dial. One unit of this sewing machine is able to sew different sewing lengths since the sewing length can be instantaneously changed over.

📦

Reduction of noise and vibration

Reduce weight by using resin parts for surface of vibration point. Noise and vibration decrease by changing the gear of an Hook into a bevel gear.

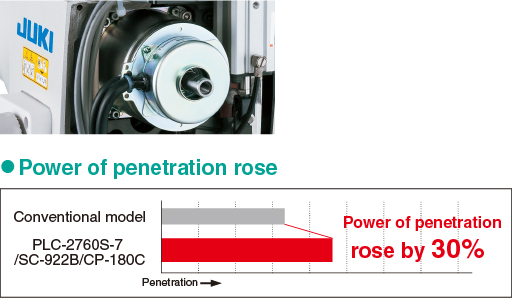

High-torque direct-drive motor is installed

The sewing machine provided with a thread trimmer has adopted a high-torque direct-drive motor which is suitable for heavy-weight materials. As a result, the sewing machine is excellent at its responsiveness and ensures increased penetration into the material even when sewing multi-layered parts. ※It does not contain without automatic thread trimmer.

PLC-2760L (Thick-thread type)

Thanks to the hook, thread-take up and gauges exclusively designed for PLC-2760L, the machine can sew with thread count up to #6. The machine is provided with the exclusive top and bottom feed locus ideal for sewing with thick-thread.

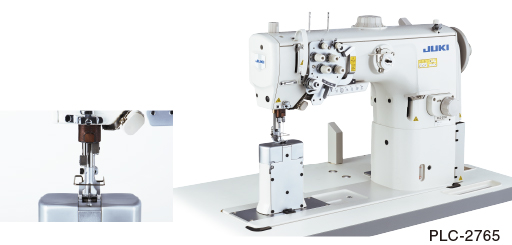

PLC-2765 (Organized split needlebars type)

With its organized split needlebars, the machine produces well-balanced topstitch-seams even at the corners of materials such as sofas.

Specification	PLC-2710S (Large hook) PLC-2710NS (Large hook) PLC-2710NM (Small hook)	PLC-2710S-7 (Large hook) PLC-2710NS-7 (Large hook) PLC-2710NM-7 (Small hook)	PLC-2760S (Large hook) PLC-2760NS (Large hook) PLC-2760NM (Small hook)	PLC-2760S-7 (Large hook) PLC-2760NS-7 (Large hook) PLC-2760NM-7 (Small hook)	PLC-2760L (Large hook)	PLC-2765 (Large hook)
Type	1-needle	1-needle	2-needle	2-needle	2-needle	2-needle
without automatic thread trimmer (V-belt type)	with automatic thread trimmer (Direct-drive)	without automatic thread trimmer (V-belt type)	with automatic thread trimmer (Direct-drive)	thick-thread type (V-belt type)	organized split needlebars type (V-belt type)
Max. Sewing speed	2,500sti/min*	2,500sti/min*	2,500sti/min*	2,500sti/min*	2,000sti/min*	2,500sti/min*
Needle	135×17 Nm100~180 Standard Nm140	135×17 Nm100~180 Standard Nm140	135×17 Nm100~180 Standard Nm140	135×17 Nm100~180 Standard Nm140	135×17 Nm140~200 Standard Nm200	135×17 Nm100~180 Standard Nm140
Thread	TEX 50~167	TEX 50~167	TEX 50~167	TEX 50~167	#8~#0	TEX 50~167
Max. stitch length	12mm (forward / backward)
Stitch adjusting method	1 pitch dial	2 pitch dial	1 pitch dial	2 pitch dial	1 pitch dial	1 pitch dial
Thread take-up	Link type
Automatic reverse feed function	Lever type	Pneumatic type	Lever type	Pneumatic type	Lever type	Lever type
Needle bar stroke	40mm	40mm	40mm	40mm	40mm	40mm
Hook	•PLC-2710S(-7), PLC-2710NS(-7), PLC-2760S(-7), PLC-2760NS(-7), PLC-2760L, PLC-2765: Vertical-axis 2.0-fold capacity hook (latch type) •PLC-2710NM(-7), PLC-2760NM(-7): Vertical-axis 1.6-fold capacity hook (latch type)	•PLC-2710S(-7), PLC-2710NS(-7), PLC-2760S(-7), PLC-2760NS(-7), PLC-2760L, PLC-2765: Vertical-axis 2.0-fold capacity hook (latch type) •PLC-2710NM(-7), PLC-2760NM(-7): Vertical-axis 1.6-fold capacity hook (latch type)	•PLC-2710S(-7), PLC-2710NS(-7), PLC-2760S(-7), PLC-2760NS(-7), PLC-2760L, PLC-2765: Vertical-axis 2.0-fold capacity hook (latch type) •PLC-2710NM(-7), PLC-2760NM(-7): Vertical-axis 1.6-fold capacity hook (latch type)	•PLC-2710S(-7), PLC-2710NS(-7), PLC-2760S(-7), PLC-2760NS(-7), PLC-2760L, PLC-2765: Vertical-axis 2.0-fold capacity hook (latch type) •PLC-2710NM(-7), PLC-2760NM(-7): Vertical-axis 1.6-fold capacity hook (latch type)	Vertical-axis 2.0-fold capacity hook (latch type)	Vertical-axis 2.0-fold capacity hook (latch type)
Lift of the presser foot	By hand: 10mm Auto: 20mm	By hand: 10mm Auto: 20mm	By hand: 10mm Auto: 20mm	By hand: 10mm Auto: 20mm	By hand: 10mm Auto: 20mm	By hand: 10mm Auto: 18mm
Alternating vertical movement	1~9mm	1~9mm	1~9mm	1~9mm	1~9mm	1~9mm
Alternating vertical movement adjusting method	Dial	Dial	Dial	Dial	Dial	Dial
DL device	Option	Provided as standard	Option	Provided as standard	Option	Option
Safety mechanism	Provided as standard	Provided as standard	Provided as standard	Provided as standard	Provided as standard	Provided as standard
Bobbin thread winder	Built in the machine arm	Built in the machine arm	Built in the machine arm	Built in the machine arm	Built in the machine arm	Built in the machine arm
Bottom-feedmicro-adjustment mechanism	Provided as standard	Provided as standard	Provided as standard	Provided as standard	Provided as standard	Provided as standard
Lubrication	Automatic (Tank system)	Automatic (Tank system)	Automatic (Tank system)	Automatic (Tank system)	Automatic (Tank system)	Automatic (Tank system)
Distance from needle to machine arm	347mm	347mm	347mm	347mm	347mm	347mm
Post height	170mm	170mm	170mm	170mm	170mm	170mm
Knee-lifter	Provided as standard	-	Provided as standard	-	Provided as standard	Provided as standard
Auto-lifter	Option	Provided as standard	Option	Provided as standard	Option	Option
Weight of the machine head	76kg	81kg	79kg	84kg	79kg	80kg
Power requirement/Power consumption	Single-phase 100~120V / 200~240V, 3-phase 200~240V / 193VA (with automatic thread trimmer)	Single-phase 100~120V / 200~240V, 3-phase 200~240V / 193VA (with automatic thread trimmer)	Single-phase 100~120V / 200~240V, 3-phase 200~240V / 193VA (with automatic thread trimmer)	Single-phase 100~120V / 200~240V, 3-phase 200~240V / 193VA (with automatic thread trimmer)	Single-phase 100~120V / 200~240V, 3-phase 200~240V / 193VA (with automatic thread trimmer)	Single-phase 100~120V / 200~240V, 3-phase 200~240V / 193VA (with automatic thread trimmer)
Air consumption	-	0.1dm³/min (ANR)	-	0.1dm³/min (ANR)	-	-

* Specifications subject to change without notice. Contact us for the latest datasheet.
