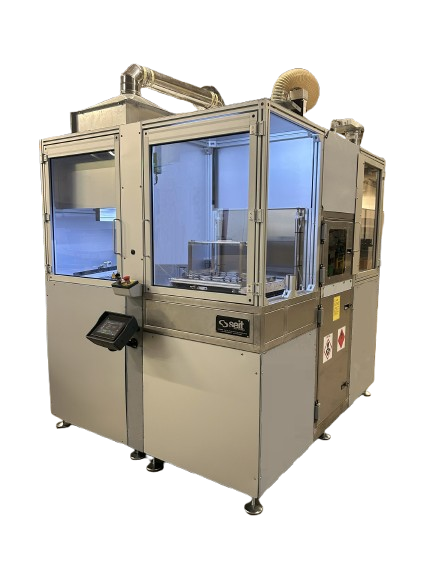

SEIT Autoflux
SEIT ELETTRONICA · Italy
Autoflux
Autoflux system for automatic FLUX application
👓 Eyewear Production

Autoflux by SEIT Elettronica allows the precise, controlled and efficient application of flux: discover features and functions. It is ideal for carrying out the pre-brazing surface treatment of metal components by immersion in a “FLUX” bath and subsequent hot air drying. As the official SEIT Elettronica distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Model
Autoflux
Download Catalogue
⚙️
Key Technical Data

Power supply voltage: 3/PE AC 400V 50/60Hz; Minimum air suction flow: 2 l / min; Voltage variation: +/-10°; Current consumption at full load: 10A.

Autoflux system for automatic FLUX application
Autoflux system for automatic FLUX application

It is ideal for carrying out the pre-brazing surface treatment of metal components by immersion in a “FLUX” bath and subsequent hot air drying.

⚙️
Key Performance Data

Power supply voltage: 3/PE AC 400V 50/60Hz; Minimum air suction flow: 2 l / min; Voltage variation: +/-10°.

SpecificationValue
BrandSEIT Elettronica · Italy
ModelAutoflux
Power supply voltage3/PE AC 400V 50/60Hz
Minimum air suction flow2 l / min
Voltage variation+/-10°
Current consumption at full load10A
Cross section cables conduction4mmq
Thermal overload protector15kA
Thermal overload protectorAccordance with IEC64/8 use of a combination plug / socket complies with IEC PROTECTED CEI EN 60309
Allowed ambient temperature at the installation site-10… +40°C
Quantity of liquid flux (min / max)50 / 150 l
Dimension of main unit (H*W*D)2180 x 1300 x 1200 mm
Overall dimensions of the heater (H*W*D)1100 x 1300 x 600 mm

* Specifications subject to change. Contact us for the latest datasheets.

🌐
