JUKI APW-896N — Moussa Egypt

JUKI

APW-896N

Automatic Waistband Attaching Machines — APW-895N / APW-896N

⚙️ Automatic — Waistband Attaching

Automatic waistband machine with improved feeding for stretch and elastic bands. The JUKI APW-896N is an Automatic Waistband Attaching Machines — APW-895N / APW-896N built for industrial production. It offers a maximum sewing speed of Max. 3,000 sti/min (1,000~3,000 sti/min) and a stitch length range of Standard 2.5mm (2.0~3.4mm), with the full official JUKI specification listed below. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue

Ask on WhatsApp

📄 PDF Catalogue 📖 Manual 🔩 Spare Parts 🎓 Training Available

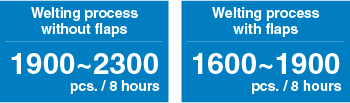

Increased productivity

In addition to the high-speed machine head with a maximum speed of 3,000 sti/min, faster movement (jump and forwarding) of the clamp foot achieves a shorter machine time.

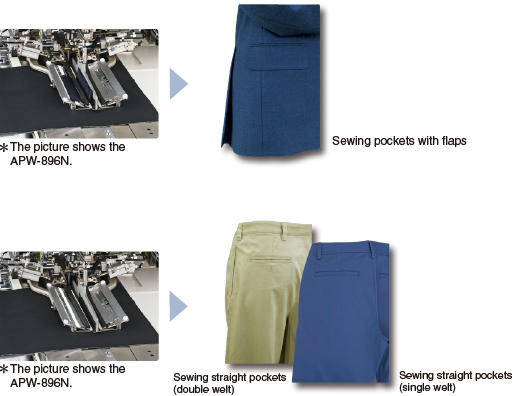

The sewing of straight pockets (with flaps) on suits, jackets and pants

The machine supports the sewing of straight pockets (with flaps) on suits, jackets and pants. Double-/single-welt sewing can be changed over by the simple touch of a key on the operation panel. Increased adjustable range of sewing lengths (min. 18mm to max. 220mm)

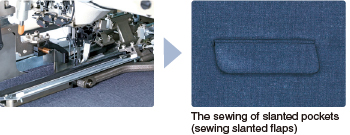

The sewing of slanted pockets (for sewing slanted flaps).(APW-896N)ONLY JUKI

In addition to the APW-895N's functions, the APW-896N supports the sewing of slanted pockets (for sewing slanted flaps). The world's first computer-controlled sidewise cutting position of the corner knives enables easy adjustments of the knives simply by operating the panel.

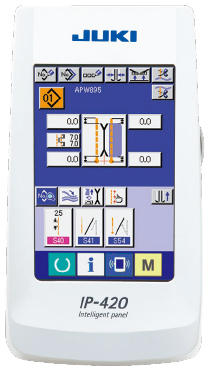

Highly-visible and easy-to-use

large color LCD touch-panel (IP-420) The graphic display and touch panel on the large color LCD help dramatically increase ease of use. Basic operations are carried out with the graphic screen and pictogram buttons. Guidance messages are given in your selected language.

External mediuma

The memory storage capability of the main body of the sewing machine has been dramatically enhanced. Now the USB-ready main body of the sewing machine uses many different kinds of media. In addition to the Compact Flash card, the main body of the sewing machine is provided as standard with a USB connector. Now, data can be input/output to/from various kinds of media (SD (Secure Digital Card), CF (Compact Flash), SM (Smart Media) etc.) by means of a USB thumb device and a card reader.

Specification	Value
Model	APW-896N
Flap type	Rectangular flap
Sewing speed	Max. 3,000 sti/min (1,000~3,000 sti/min)*
Kind of welts	Parallel double welt, parallel single welt (with/without flaps)
Stitch length	Standard 2.5mm (2.0~3.4mm)
Stitch length (fastening stitching)	Condensation stitching: Standard 1.0mm (0.5~1.5mm) Back-tack stitching: Standard 2.0mm (0.5~3.0mm) *Changeable between condensation / back tack stitching
Corner-knife cutting adjusting method	Mechanical adjustment
Needle	ORGAN DP × 17 Standard #16 (#14~#18), SCHMETZ 190R Standard #100 (#100~#110)
Thread	SPUN #60 (recommend)
Hook	Vertical-axis 1.7-fold capacity hook
Number of independent sewing patterns	99 patterns (999 patterns when a CF memory card is used)
Number of cycle sewing patterns	20 patterns
Number of alternate sewing patterns	20 patterns
Machine head	2-needle, lockstitch machine (LH-895)
Cloth feeding system	Driven by a stepping motor
Power requirement	Single-phasae 200~240V, 3-phase 200~380V 50Hz / 60Hz
Power consumption	350VA
Compressed air / Air consumption	0.5MPa, 40dm³/min (ANR)
Weight	238.5kg
Dimensions	1,095mm(W)×1,500mm(D)×1,200mm(H) (Width 1580mm = Stacker included) (Height 1800mm = Thread stand included)

* Specifications subject to change. Contact us for the latest datasheet.
