Coverstitch optimized for collarette attaching on T-shirts and knitwear. The JUKI MF7500 C11 is a Flat-Bed, Top & Bottom Coverstitch Machine — Universal Type built for industrial production. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.
This model is best suited for attaching collarettes on underwear, briefs and knitwear. Ease of use is further improved by using the electromagnetic type tape cutter (TC16).
With the excellent functions inherited from the MF-7500 Series, the MF-7500D is provided with a dry frame mechanism to eliminate the cause of oil stains. Stain removing work or re-sewing work is substantially reduced by protecting sewing products from being stained with oil, thereby improving the quality of finished products.

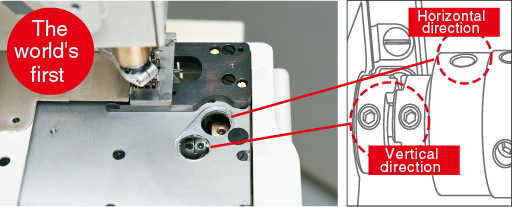

The feed locus can be adjusted externally. The feed locus is now adjustable in terms of the vertical direction and horizontal direction, thereby improving responsiveness to sewing materials.

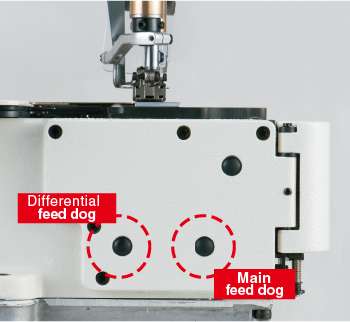

The longitudinal position of the feed is adjustable. As a result, uneven material feed and puckering that are likely to occur when sewing products made of elastic materials such as foundations are reduced. This means that the machine promises improved responsiveness to elastic materials.

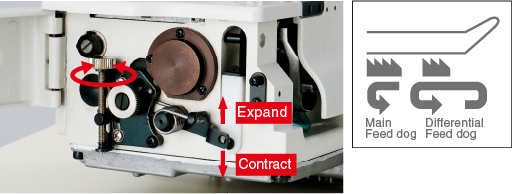

It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed.
Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage and damage of the material.
| Specification | MF-7500 series | MF-7500D series |
|---|---|---|
| Stitch type | 2-needle/3-needle/4-needle top and bottom covering stitch | 2-needle/3-needle/4-needle top and bottom covering stitch |
| Needle | UY128GAS (#10S) #9S~#12S | UY128GAS (#10S) #9S~#12S |
| Lift of the presser foot | 5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch) | 5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch) |
| Stitch pitch adjustment | By dial | By dial |
| Differential feed adjustment | By micro-adjustment mechanism | By micro-adjustment mechanism |
| Lubrication | Automatiac | Automatiac |
| Lubricating oil | JUKI Machine Oil 18 (equivalent to ISO VG18) | JUKI Machine Oil 18 (equivalent to ISO VG18) |
| Feed dog inclination adjustment | Provided as standard | Provided as standard |
| Micro-lifter | Provided as standard | Provided as standard |
| Needle bar stroke converting function | Provided as standard: 31mm: at the time of delivery / When sewing a heavy-weight material: 33mm | Provided as standard: 31mm: at the time of delivery / When sewing a heavy-weight material: 33mm |
| Silicon oil tank for needle tip and needle thread | Provided as standard | Provided as standard |
| Cartridge oil filter | Provided as standard | Provided as standard |
| Power requirement | Single-phase 100~120V / 200~240V, 3-phase 200~240V (with automatic thread trimmer) | Single-phase 100~120V / 200~240V, 3-phase 200~240V (with automatic thread trimmer) |
| Power consumption | 500VA (with automatic thread trimmer) | 500VA (with automatic thread trimmer) |
* Specifications subject to change without notice. Contact us for the latest information.
