JUKI MH-484-5
JUKI
MH-484-5
High-Speed Double Chainstitch Machine
🧵 Sewing — Double Chainstitch

Double chainstitch with differential feed for stretchable seams on knitwear. The JUKI MH-484-5 is a High-Speed Double Chainstitch Machine built for industrial production. It offers a maximum sewing speed of 5,500rpm and a stitch length range of Main feed: 1~4mm Differential-feed: 1~5.6mm, with the full official JUKI specification listed below. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue
💪

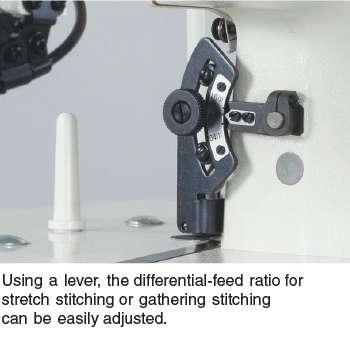

Change of sewing method with a simple lever operation

The sewing method can be alternated between stretch stitching and shirr stitching with the simple operation of a lever. This lever is also used to adjust the differential-feed ratio.

The machine is capable of gathering and partial shirring
The machine is capable of gathering and partial shirring

A gathering attachment (S060), intermittent gathering attachment (S061) and partial shirring device (PF5) are optionally available to enable the machine to perform consistent gathering and partial shirring. Replaceable gauges such as the gauge for light-weight materials and the urethane feed dog are prepared in accordance with the applications of the machine.

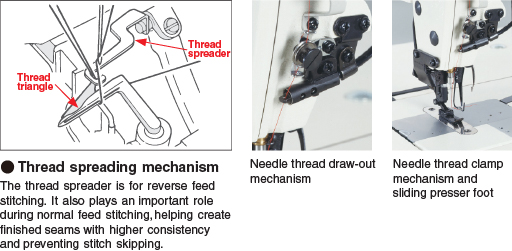

The machine is provided with mechanisms to enable upgraded sewing
The machine is provided with mechanisms to enable upgraded sewing

The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.

💪
Safety stitching or reverse feed stitching with a simple lever operation

Safety stitching (condensation stitching) the perfect method of preventing loose stitches, or reverse feed stitching (back-tacking) can be alternated through the simple adjustment of the stopper of the reverse feed lever. Either sewing method can be used.

💪
Beautifully finished seams

Provided with a sliding presser foot and a silicone oil lubricating unit as standard, stitch skipping and puckering are prevented. Furthermore, the silicone oil lubricating unit prevents the needle from overheating, and allows foundation yarn or synthetic thread to be used without breakage during sewing. These features assure beautifully finished seams with consistency for light- to medium-weight materials.

SpecificationMH-484MH-484-5(4)
Feed systemDifferential-feed
Max. sewing speed5,500rpm
Stitch lengthMain feed: 1~4mm Differential-feed: 1~5.6mm
Top-feed amount-
Differential-feed ratioMax. gathering stitching 1: 3 (standard 1: 1.5) Max. stretch stitching 1: 0.5
Lift of the presser footBy hand: 5mm, By knee: 10mm
Needle bar stroke30mm
Needle (at the time of delivery)TV × 7 (#11) #9~#18
Stitch length adjustmentBy dial
Safety stitchCondensation stitch/reverse stitching (by feed lever)
Looper systemInclined crank
Looper stroke21.5mm
Looper stroke of the front and rear2.1~3.3mm
Speed control-*(1)
LubricationAutomatic
Lubricating oilJUKI New Defrix Oil No.1 (equivalent to ISO VG7)
Motor output750W-
Power requirementSingle-phase, 3-phase-
Power consumptionRating 425VA-

* Specifications subject to change without notice. Contact us for the latest datasheet.

📄
