JUKI

PS-810

Automated Pattern Seaming Machines — PS-910 / PS-800 / PS-810

⚙️ Automatic — Pattern Seaming

Pattern seamer with extended throat for large fabric pieces and panels. The JUKI PS-810 is an Automated Pattern Seaming Machines — PS-910 / PS-800 / PS-810 built for industrial production. It offers a maximum sewing speed of 3,000 sti/min and a stitch length range of 0.1-12.7mm, with the full official JUKI specification listed below. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue

Ask on WhatsApp

📄 PDF Catalogue 📖 Manual 🔩 Spare Parts 🎓 Training Available

Feed accuracy improved to 0.05mm

The feed pitch can be set in 0.05mm increments. When sewing decorative stitching, cross stitching can be accurately reproduced at intersections. The feed accuracy has been significantly improved compared to the 0.5mm feed accuracy of the PS-800.

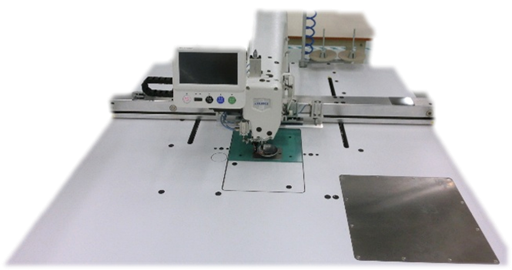

Larger vacuum now available for retrofitting

The vacuum size in the same sewing area has been increased by 1.25 to 1.3 times compared to previous models. In addition, a vacuum unit can be retrofitted even on vacuum-less models. Furthermore, a vacuum unit can now be installed on the H model as well.

📐

Laser cutter specification added to H model

A laser cutter specification has been added to the H model. In addition to cutting, laser cutters are also used for punching holes and welding end threads. For safety reasons, the laser cutter cannot be retrofitted, so the factory specifications are used.

Optional Additions

1) Bobbin Changer The cost-effective bobbin changer BK-11 can now be installed.

Specification	800mm×450mm	1,000mm×450mm	1,300mm×850mm
Model name	S spec	PS-810SB-8045ZKZ PS-810SB-8045ZKW	PS-810SB-10045ZKZ PS-810SB-10045ZKW
S spec + Laser	PS-810SB-8045CKZ PS-810SB-8045CKW	PS-810SB-10045CKZ PS-810SB-10045CKW	PS-810SB-13085CKZ PS-810SB-13085CKW
S spec + Rotary K	PS-810SB-8045AKK PS-810SB-8045AKV	PS-810SB-10045AKK PS-810SB-10045AKV	PS-810SB-13085AKK PS-810SB-13085AKV
S spec + Vacuum	PS-810SB-8045ZKZV PS-810SB-8045ZKWV	PS-810SB-10045ZKZV PS-810SB-10045ZKWV	PS-810SB-13085ZKZV PS-810SB-13085ZKWV
S spec + Laser + Vacuum	PS-810SB-8045CKZV PS-810SB-8045CKWV	PS-810SB-10045CKZV PS-810SB-10045CKWV	PS-810SB-13085CKZV PS-810SB-13085CKWV
S spec + Rotary K + Vacuum	PS-810SB-8045AKKV PS-810SB-8045AKVV	PS-810SB-10045AKKV PS-810SB-10045AKVV	PS-810SB-13085AKKV PS-810SB-13085AKVV
H spec	PS-810HB-8045ZKZ PS-810HB-8045ZKW	PS-810HB-10045ZKZ PS-810HB-10045ZKW	PS-810HB-13085ZKZ PS-810HB-13085ZKW
H spec + Laser	PS-810HB-8045CKZ PS-810HB-8045CKW	PS-810HB-10045CKZ PS-810HB-10045CKW	PS-810HB-13085CKZ PS-810HB-13085CKW
A spec	－
Feed Drive type	Belt Drive
Maximum Sewing Speed	3,000sti/min*1 （Factory Default Settings：2,800sti/min）
Lubrication type	Semi-Dry (Needle bar dry)
Stitch Length	0.1-12.7mm
Hook	Full-Rotation Double Capacity Hook
Intermediate Presser Foot Lift & Stroke	Lift Amount:20mm Stroke:0～4mm
Variable lower dead point of the intermidiate presser	0-9mm
Boat pressure lift	15mm
needle bar stroke	39.5mm
Thread Trimming type	Single-Blade Rotary
Needle supplied at shipment	S spec:BB×1#8(#7～#12) H spec:DP×17#21(#18～#23)
Template recognition function	RFID/Barcode
Pattern Data Storage	Max 999 patterns (Up to 80,000 stitches per pattern)
Number of Identification Patterns	999 patterns
Program Input Method	USB
Data Format	Convert DXF / AL / PLT / DST formats to SCO format using editing software
JaNets	Connectable
Weight	Standard specification : 265kg	Standard specification : 275kg	Standard specification : 511kg
Power consumption	Standard:300VA Laser:1400VA Rotary knife:300VAS
Air consumption	90L/min
Power supply	Single-phase 220V
Dimensions (table height)	1,200mm(W)×1,325mm(L)×830mm(H)	1,400mm(W)×1,325mm(L)×830mm(H)	2,100mm(W)×2,193mm(L)×830mm(H)
cutting area	Rotary knife	699mm×393mm	899mm×399mm
Laser cutter	646mm×426mm	846mm×426mm	1,146mm×826mm
Vacuum area	432mm×432mm

* Detailed specifications available on request. Contact us for the latest datasheet.
